Handles

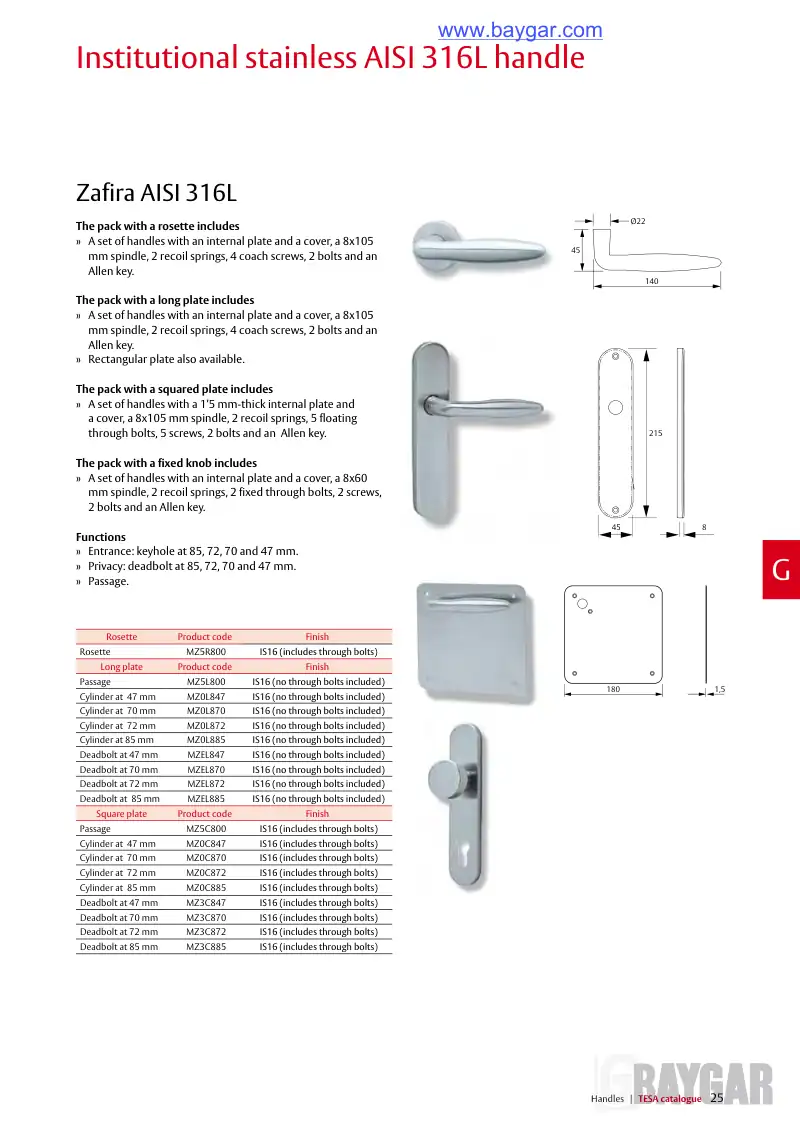

G Handles | TESA catalogue 25 Institutional stainless AISI 316L handle Zafira Aisi 316L The pack with a rosette includes » A set of handles with an internal plate and a cover, a 8x105 mm spindle, 2 recoil springs, 4 coach screws, 2 bolts and an Allen key. The pack with a long plate includes » A set of handles with an internal plate and a cover, a 8x105 mm spindle, 2 recoil springs, 4 coach screws, 2 bolts and an Allen key. » Rectangular plate also available. The pack with a squared plate includes » A set of handles with a 1’5 mm-thick internal plate and a cover, a 8x105 mm spindle, 2 recoil springs, 5 floating through bolts, 5 screws, 2 bolts and an Allen key. The pack with a fixed knob includes » A set of handles with an internal plate and a cover, a 8x60 mm spindle, 2 recoil springs, 2 fixed through bolts, 2 screws, 2 bolts and an Allen key. Functions » Entrance: keyhole at 85, 72, 70 and 47 mm. » Privacy: deadbolt at 85, 72, 70 and 47 mm. » Passage. Rosette Product code Finish Rosette MZ5R800 IS16 (includes through bolts) Long plate Product code Finish Passage MZ5L800 IS16 (no through bolts included) Cylinder at 47 mm MZ0L847 IS16 (no through bolts included) Cylinder at 70 mm MZ0L870 IS16 (no through bolts included) Cylinder at 72 mm MZ0L872 IS16 (no through bolts included) Cylinder at 85 mm MZ0L885 IS16 (no through bolts included) Deadbolt at 47 mm MZEL847 IS16 (no through bolts included) Deadbolt at 70 mm MZEL870 IS16 (no through bolts included) Deadbolt at 72 mm MZEL872 IS16 (no through bolts included) Deadbolt at 85 mm MZEL885 IS16 (no through bolts included) Square plate Product code Finish Passage MZ5C800 IS16 (includes through bolts) Cylinder at 47 mm MZ0C847 IS16 (includes through bolts) Cylinder at 70 mm MZ0C870 IS16 (includes through bolts) Cylinder at 72 mm MZ0C872 IS16 (includes through bolts) Cylinder at 85 mm MZ0C885 IS16 (includes through bolts) Deadbolt at 47 mm MZ3C847 IS16 (includes through bolts) Deadbolt at 70 mm MZ3C870 IS16 (includes through bolts) Deadbolt at 72 mm MZ3C872 IS16 (includes through bolts) Deadbolt at 85 mm MZ3C885 IS16 (includes through bolts) 215 45 8 45 Ø22 140 180 1,5 www.baygar.com
