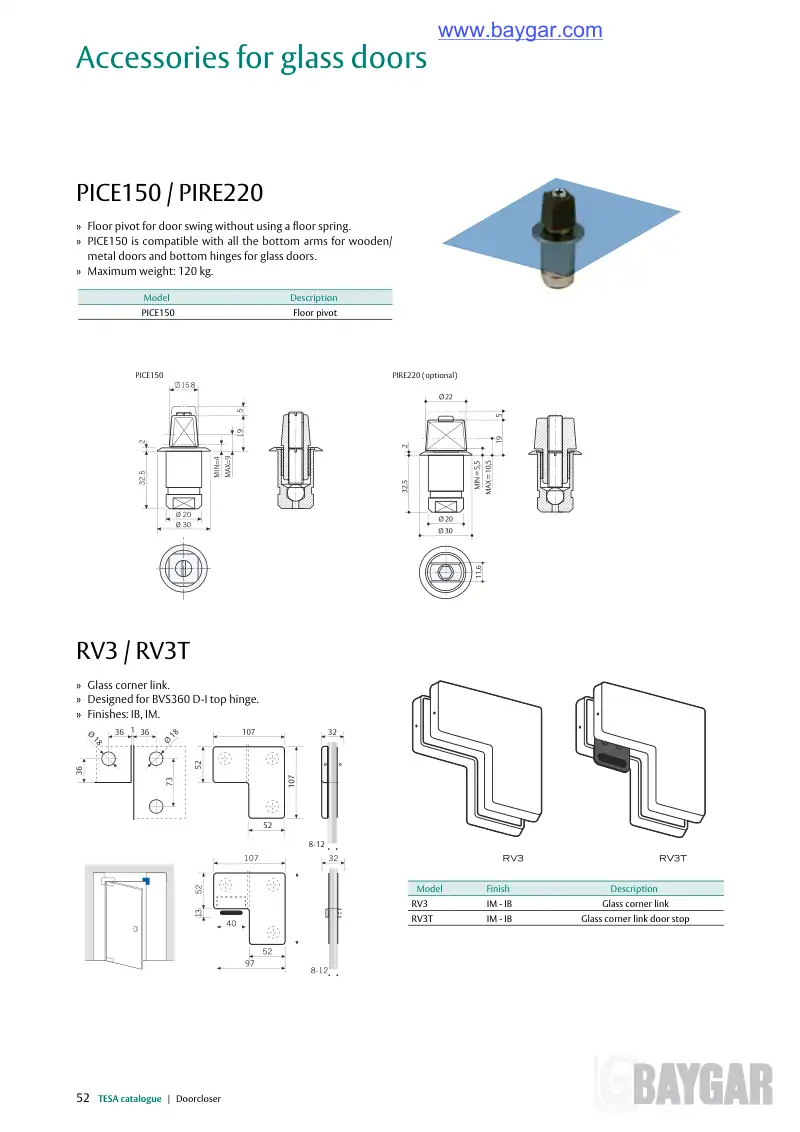

52 TESA catalogue | Doorcloser » Floor pivot for door swing without using a floor spring. » PICE150 is compatible with all the bottom arms for wooden/ metal doors and bottom hinges for glass doors. » Maximum weight: 120 kg. Model Description PICE150 Floor pivot RV3 / RV3T » Glass corner link. » Designed for BVS360 D-I top hinge. » Finishes: IB, IM. Model Finish Description RV3 IM - IB Glass corner link RV3T IM - IB Glass corner link door stop Accessories for glass doors PICE150 / PIRE220 PICE150 PIRE220 (optional) www.baygar.com
