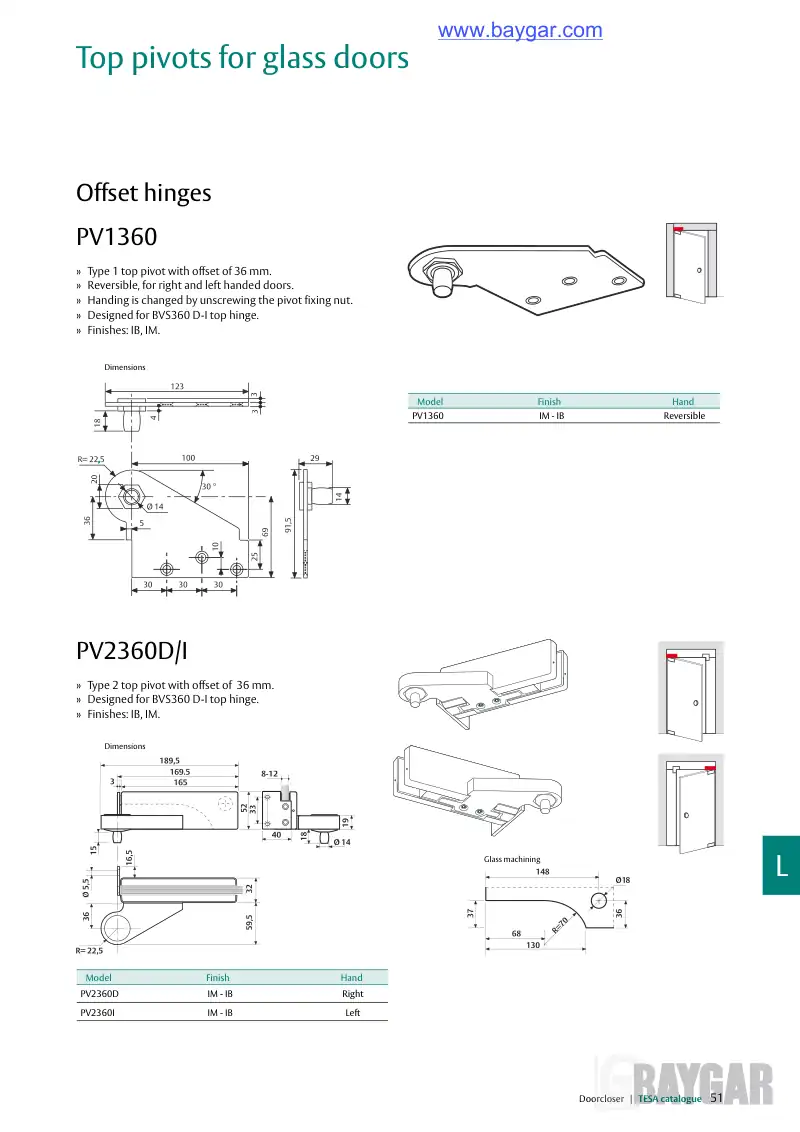

L Doorcloser | TESA catalogue 51 » Type 1 top pivot with offset of 36 mm. » Reversible, for right and left handed doors. » Handing is changed by unscrewing the pivot fixing nut. » Designed for BVS360 D-I top hinge. » Finishes: IB, IM. PV1360 Model Finish Hand PV1360 IM - IB Reversible » Type 2 top pivot with offset of 36 mm. » Designed for BVS360 D-I top hinge. » Finishes: IB, IM. PV2360D/I Model Finish Hand PV2360D IM - IB Right PV2360I IM - IB Left Top pivots for glass doors Offset hinges Dimensions Dimensions Glass machining www.baygar.com
