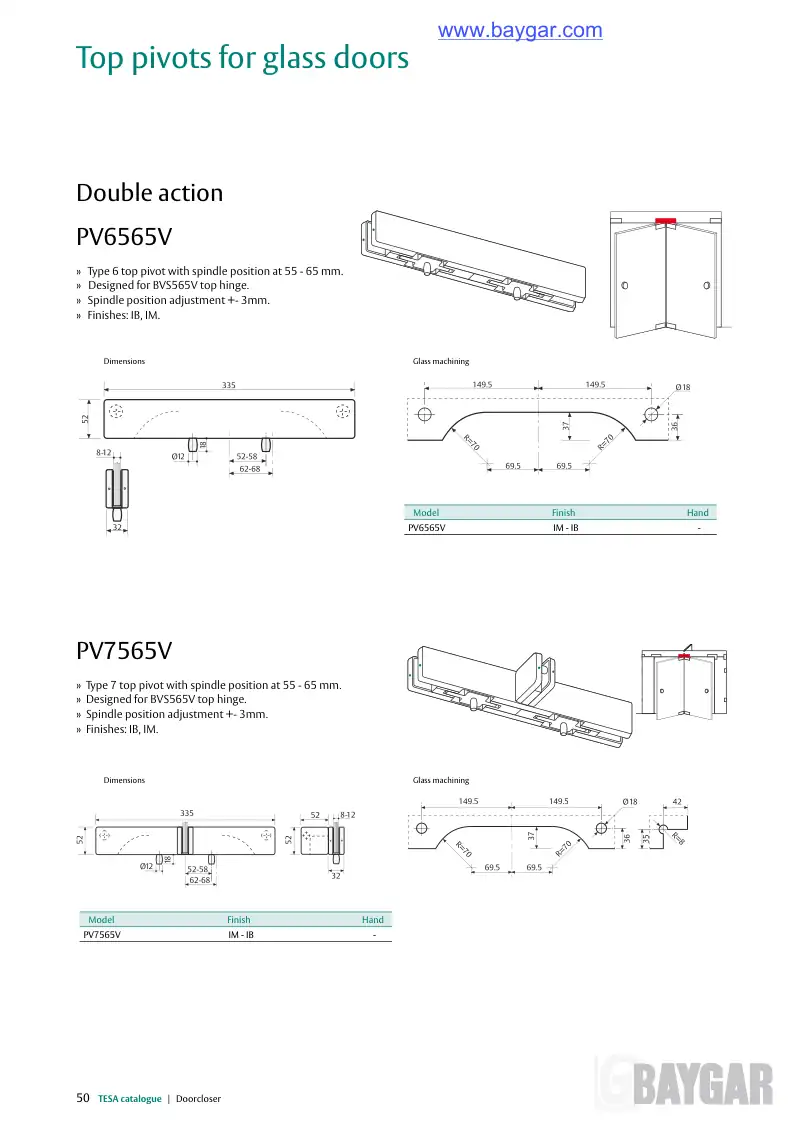

To see the page exactly as printed, open it in the PDF. Open the PDF at page 50
Text of page 50
50 TESA catalogue | Doorcloser » Type 6 top pivot with spindle position at 55 - 65 mm. » Designed for BVS565V top hinge. » Spindle position adjustment +- 3mm. » Finishes: IB, IM. PV6565V Model Finish Hand PV6565V IM - IB - » Type 7 top pivot with spindle position at 55 - 65 mm. » Designed for BVS565V top hinge. » Spindle position adjustment +- 3mm. » Finishes: IB, IM. PV7565V Model Finish Hand PV7565V IM - IB - Top pivots for glass doors Double action Dimensions Dimensions Glass machining Glass machining www.baygar.com
