Text of page 49

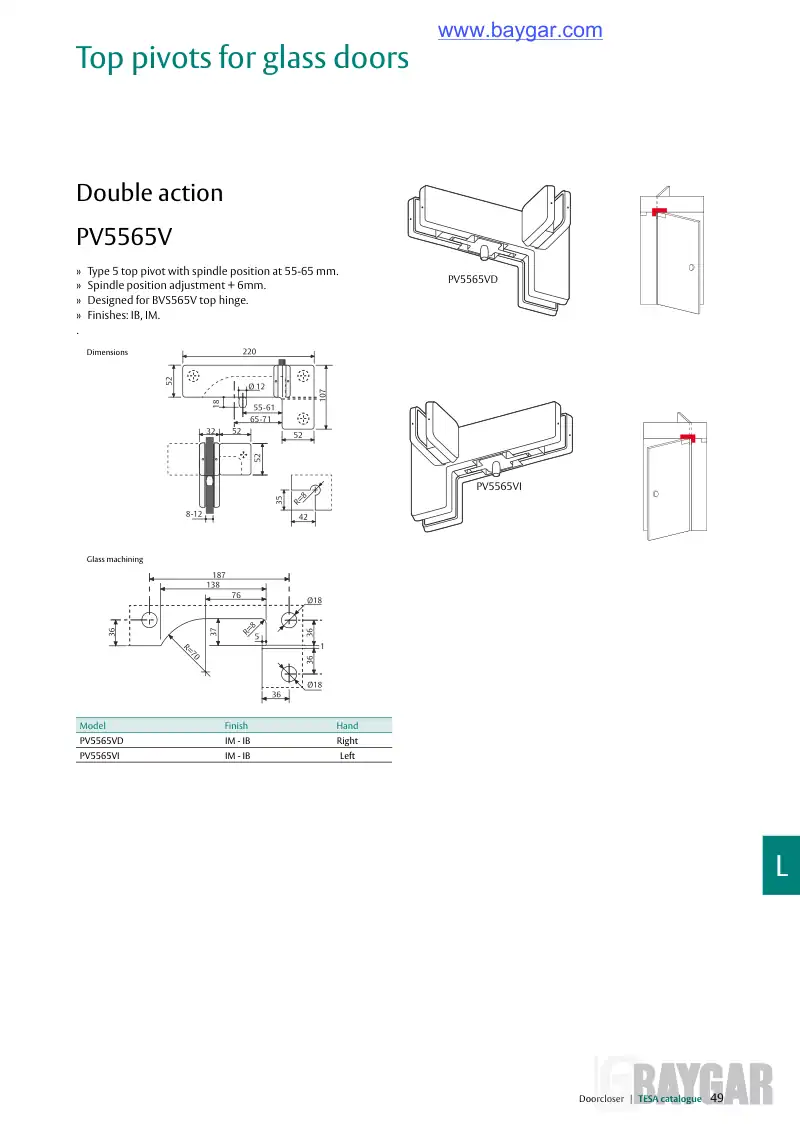

L Doorcloser | TESA catalogue 49 » Type 5 top pivot with spindle position at 55-65 mm. » Spindle position adjustment + 6mm. » Designed for BVS565V top hinge. » Finishes: IB, IM. . PV5565V Model Finish Hand PV5565VD IM - IB Right PV5565VI IM - IB Left Top pivots for glass doors Double action Dimensions Glass machining PV5565VD PV5565VI www.baygar.com
