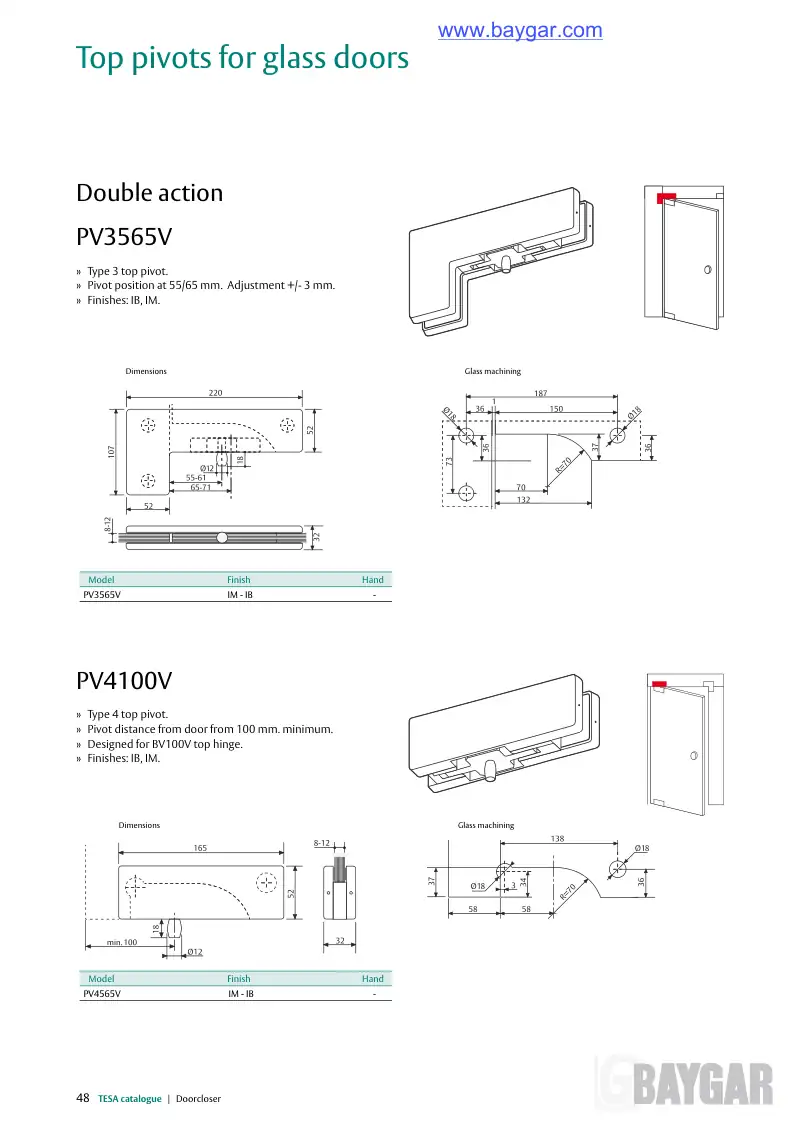

48 TESA catalogue | Doorcloser » Type 3 top pivot. » Pivot position at 55/65 mm. Adjustment +/- 3 mm. » Finishes: IB, IM. PV3565V Model Finish Hand PV3565V IM - IB - » Type 4 top pivot. » Pivot distance from door from 100 mm. minimum. » Designed for BV100V top hinge. » Finishes: IB, IM. PV4100V Model Finish Hand PV4565V IM - IB - Top pivots for glass doors Double action Dimensions Dimensions Glass machining Glass machining www.baygar.com
