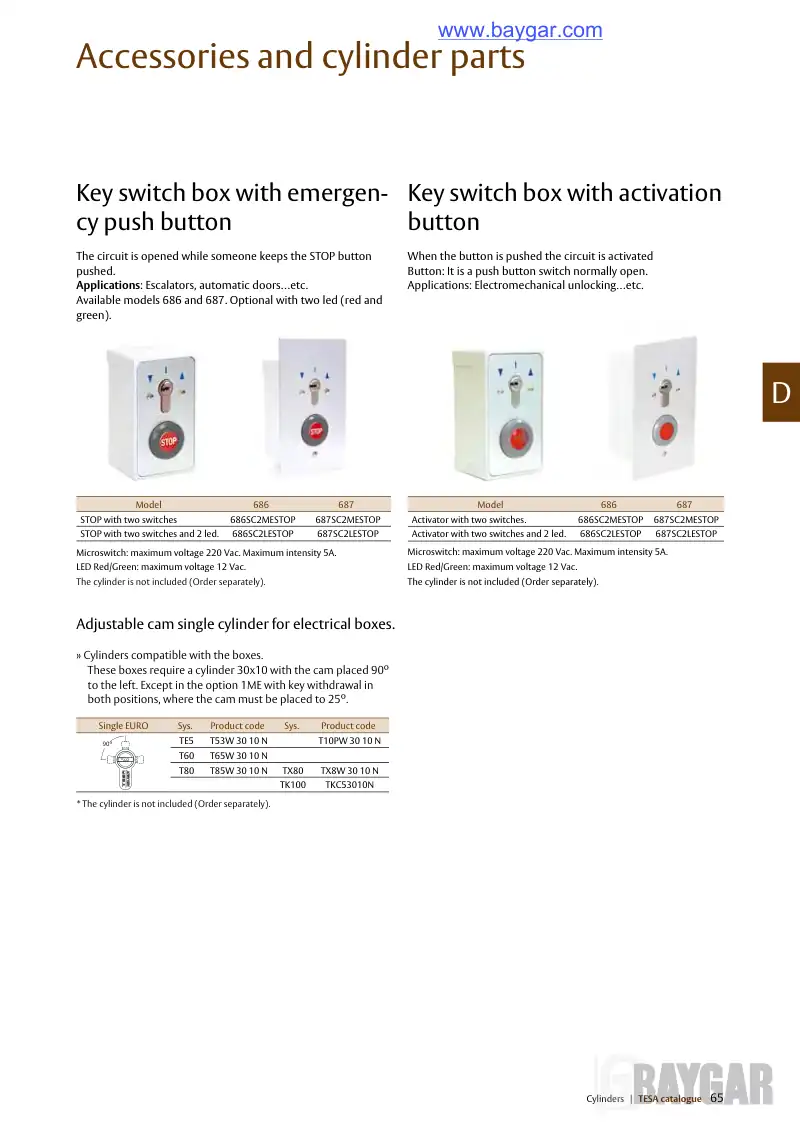

D Cylinders | TESA catalogue 65 Accessories and cylinder parts Key switch box with emergen- cy push button Key switch box with activation button The circuit is opened while someone keeps the STOP button pushed. Applications: Escalators, automatic doors…etc. Available models 686 and 687. Optional with two led (red and green). When the button is pushed the circuit is activated Button: It is a push button switch normally open. Applications: Electromechanical unlocking…etc. Microswitch: maximum voltage 220 Vac. Maximum intensity 5A. LED Red/Green: maximum voltage 12 Vac. The cylinder is not included (Order separately). Microswitch: maximum voltage 220 Vac. Maximum intensity 5A. LED Red/Green: maximum voltage 12 Vac. The cylinder is not included (Order separately). Model 686 687 STOP with two switches 686SC2MESTOP 687SC2MESTOP STOP with two switches and 2 led. 686SC2LESTOP 687SC2LESTOP Model 686 687 Activator with two switches. 686SC2MESTOP 687SC2MESTOP Activator with two switches and 2 led. 686SC2LESTOP 687SC2LESTOP Adjustable cam single cylinder for electrical boxes. » Cylinders compatible with the boxes. These boxes require a cylinder 30x10 with the cam placed 90º to the left. Except in the option 1ME with key withdrawal in both positions, where the cam must be placed to 25º. * The cylinder is not included (Order separately). Single EURO Sys. Product code Sys. Product code TE5 T53W 30 10 N T10PW 30 10 N T60 T65W 30 10 N T80 T85W 30 10 N TX80 TX8W 30 10 N TK100 TKC53010N 90º www.baygar.com
