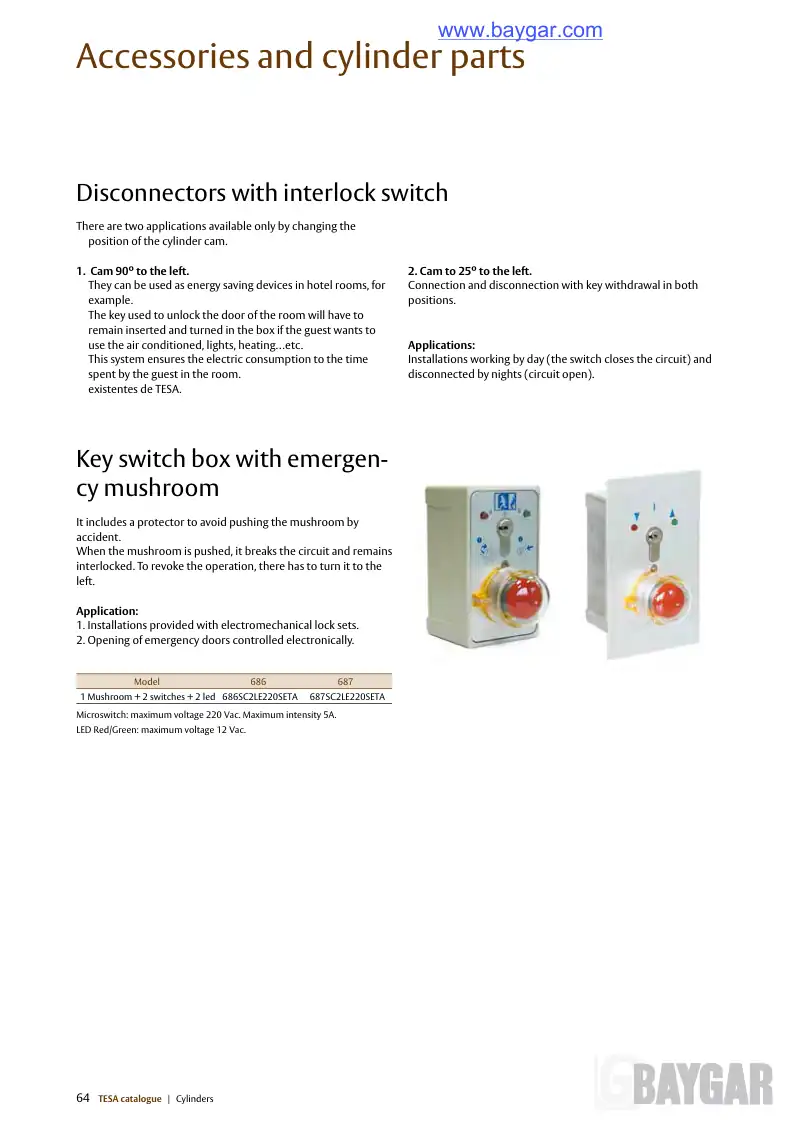

64 TESA catalogue | Cylinders Accessories and cylinder parts Disconnectors with interlock switch Key switch box with emergen- cy mushroom It includes a protector to avoid pushing the mushroom by accident. When the mushroom is pushed, it breaks the circuit and remains interlocked. To revoke the operation, there has to turn it to the left. Application: 1. Installations provided with electromechanical lock sets. 2. Opening of emergency doors controlled electronically. Microswitch: maximum voltage 220 Vac. Maximum intensity 5A. LED Red/Green: maximum voltage 12 Vac. There are two applications available only by changing the position of the cylinder cam. 1. Cam 90º to the left. They can be used as energy saving devices in hotel rooms, for example. The key used to unlock the door of the room will have to remain inserted and turned in the box if the guest wants to use the air conditioned, lights, heating…etc. This system ensures the electric consumption to the time spent by the guest in the room. existentes de TESA. 2. Cam to 25º to the left. Connection and disconnection with key withdrawal in both positions. Applications: Installations working by day (the switch closes the circuit) and disconnected by nights (circuit open). Model 686 687 1 Mushroom + 2 switches + 2 led 686SC2LE220SETA 687SC2LE220SETA www.baygar.com
