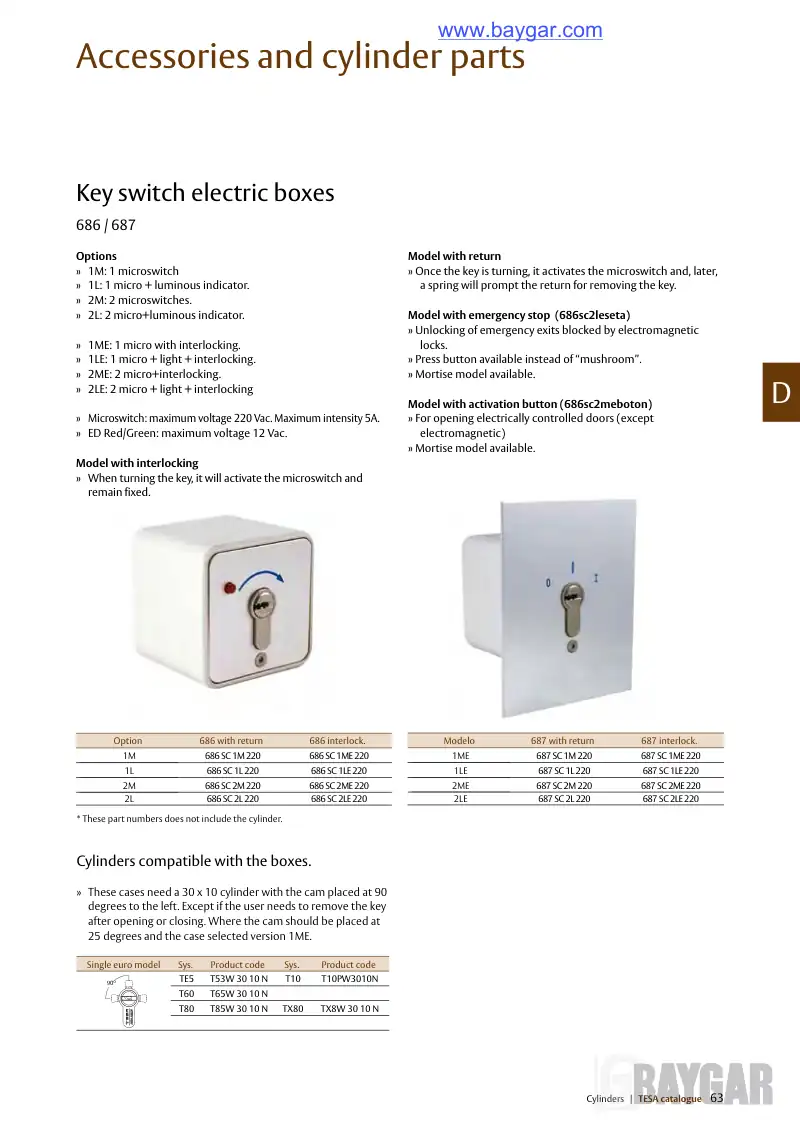

D Cylinders | TESA catalogue 63 Accessories and cylinder parts Key switch electric boxes 686 / 687 Options » 1M: 1 microswitch » 1L: 1 micro + luminous indicator. » 2M: 2 microswitches. » 2L: 2 micro+luminous indicator. » 1ME: 1 micro with interlocking. » 1LE: 1 micro + light + interlocking. » 2ME: 2 micro+interlocking. » 2LE: 2 micro + light + interlocking » Microswitch: maximum voltage 220 Vac. Maximum intensity 5A. » ED Red/Green: maximum voltage 12 Vac. Model with interlocking » When turning the key, it will activate the microswitch and remain fixed. Model with return » Once the key is turning, it activates the microswitch and, later, a spring will prompt the return for removing the key. Model with emergency stop (686sc2leseta) » Unlocking of emergency exits blocked by electromagnetic locks. » Press button available instead of “mushroom”. » Mortise model available. Model with activation button (686sc2meboton) » For opening electrically controlled doors (except electromagnetic) » Mortise model available. Option 686 with return 686 interlock. 1M 686 SC 1M 220 686 SC 1ME 220 1L 686 SC 1L 220 686 SC 1LE 220 2M 686 SC 2M 220 686 SC 2ME 220 2L 686 SC 2L 220 686 SC 2LE 220 Modelo 687 with return 687 interlock. 1ME 687 SC 1M 220 687 SC 1ME 220 1LE 687 SC 1L 220 687 SC 1LE 220 2ME 687 SC 2M 220 687 SC 2ME 220 2LE 687 SC 2L 220 687 SC 2LE 220 * These part numbers does not include the cylinder. Cylinders compatible with the boxes. » These cases need a 30 x 10 cylinder with the cam placed at 90 degrees to the left. Except if the user needs to remove the key after opening or closing. Where the cam should be placed at 25 degrees and the case selected version 1ME. Single euro model Sys. Product code Sys. Product code TE5 T53W 30 10 N T10 T10PW3010N T60 T65W 30 10 N T80 T85W 30 10 N TX80 TX8W 30 10 N 90º www.baygar.com
