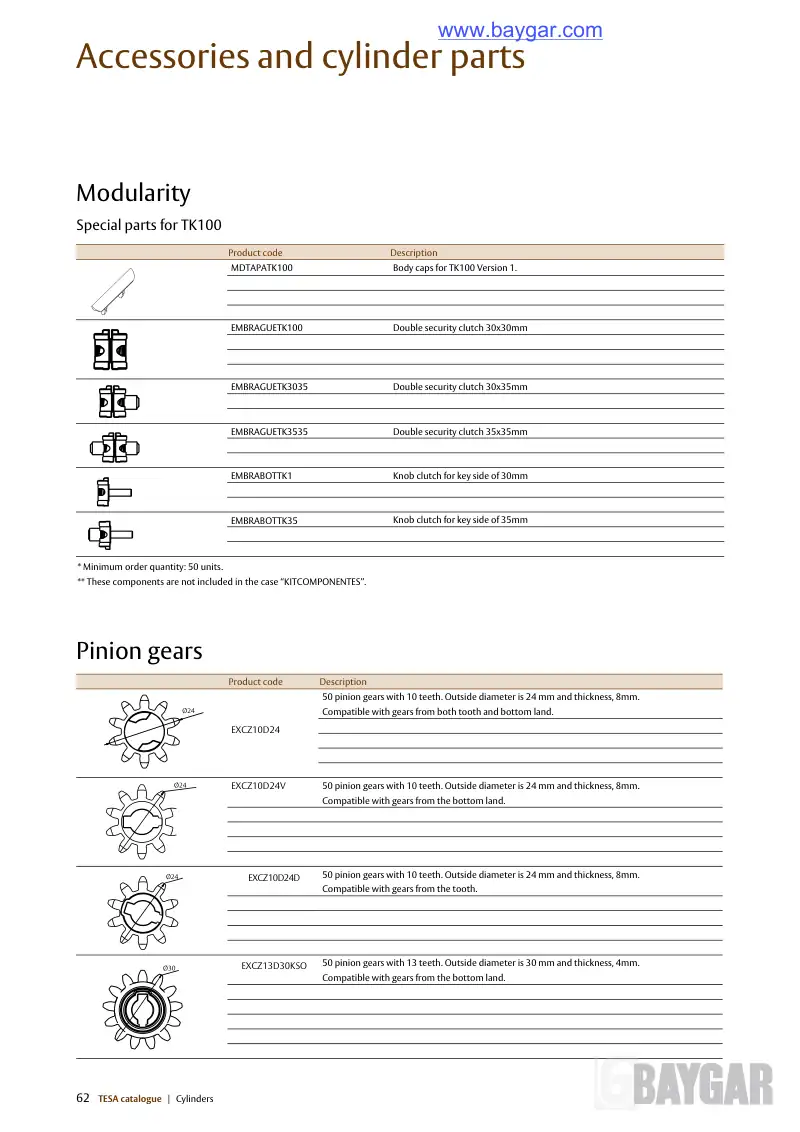

62 TESA catalogue | Cylinders Accessories and cylinder parts Special parts for TK100 Modularity Pinion gears Product code Description MDTAPATK100 Body caps for TK100 Version 1. EMBRAGUETK100 Double security clutch 30x30mm EMBRAGUETK3035 Double security clutch 30x35mm EMBRAGUETK3535 Double security clutch 35x35mm EMBRABOTTK1 Knob clutch for key side of 30mm EMBRABOTTK35 Knob clutch for key side of 35mm Product code Description EXCZ10D24 50 pinion gears with 10 teeth. Outside diameter is 24 mm and thickness, 8mm. Compatible with gears from both tooth and bottom land. EXCZ10D24V 50 pinion gears with 10 teeth. Outside diameter is 24 mm and thickness, 8mm. Compatible with gears from the bottom land. EXCZ10D24D 50 pinion gears with 10 teeth. Outside diameter is 24 mm and thickness, 8mm. Compatible with gears from the tooth. EXCZ13D30KSO 50 pinion gears with 13 teeth. Outside diameter is 30 mm and thickness, 4mm. Compatible with gears from the bottom land. * Minimum order quantity: 50 units. ** These components are not included in the case “KITCOMPONENTES”. Ø24 Ø24 Ø24 Ø30 www.baygar.com
