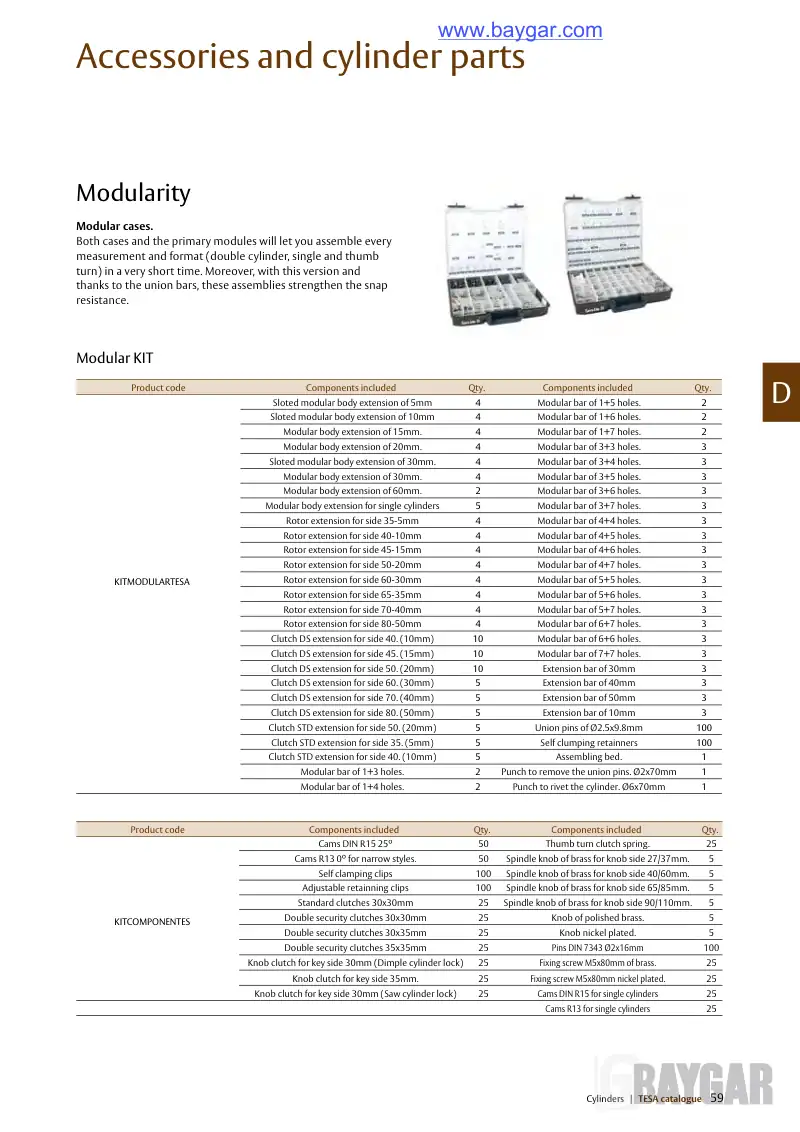

D Cylinders | TESA catalogue 59 Accessories and cylinder parts Modularity Modular KIT Product code Components included Qty. Components included Qty. Sloted modular body extension of 5mm 4 Modular bar of 1+5 holes. 2 Sloted modular body extension of 10mm 4 Modular bar of 1+6 holes. 2 Modular body extension of 15mm. 4 Modular bar of 1+7 holes. 2 Modular body extension of 20mm. 4 Modular bar of 3+3 holes. 3 Sloted modular body extension of 30mm. 4 Modular bar of 3+4 holes. 3 Modular body extension of 30mm. 4 Modular bar of 3+5 holes. 3 Modular body extension of 60mm. 2 Modular bar of 3+6 holes. 3 Modular body extension for single cylinders 5 Modular bar of 3+7 holes. 3 Rotor extension for side 35-5mm 4 Modular bar of 4+4 holes. 3 Rotor extension for side 40-10mm 4 Modular bar of 4+5 holes. 3 Rotor extension for side 45-15mm 4 Modular bar of 4+6 holes. 3 Rotor extension for side 50-20mm 4 Modular bar of 4+7 holes. 3 Rotor extension for side 60-30mm 4 Modular bar of 5+5 holes. 3 Rotor extension for side 65-35mm 4 Modular bar of 5+6 holes. 3 Rotor extension for side 70-40mm 4 Modular bar of 5+7 holes. 3 Rotor extension for side 80-50mm 4 Modular bar of 6+7 holes. 3 Clutch DS extension for side 40. (10mm) 10 Modular bar of 6+6 holes. 3 Clutch DS extension for side 45. (15mm) 10 Modular bar of 7+7 holes. 3 Clutch DS extension for side 50. (20mm) 10 Extension bar of 30mm 3 Clutch DS extension for side 60. (30mm) 5 Extension bar of 40mm 3 Clutch DS extension for side 70. (40mm) 5 Extension bar of 50mm 3 Clutch DS extension for side 80. (50mm) 5 Extension bar of 10mm 3 Clutch STD extension for side 50. (20mm) 5 Union pins of Ø2.5x9.8mm 100 Clutch STD extension for side 35. (5mm) 5 Self clumping retainners 100 Clutch STD extension for side 40. (10mm) 5 Assembling bed. 1 Modular bar of 1+3 holes. 2 Punch to remove the union pins. Ø2x70mm 1 Modular bar of 1+4 holes. 2 Punch to rivet the cylinder. Ø6x70mm 1 Modular cases. Both cases and the primary modules will let you assemble every measurement and format (double cylinder, single and thumb turn) in a very short time. Moreover, with this version and thanks to the union bars, these assemblies strengthen the snap resistance. Product code Components included Qty. Components included Qty. Cams DIN R15 25º 50 Thumb turn clutch spring. 25 Cams R13 0º for narrow styles. 50 Spindle knob of brass for knob side 27/37mm. 5 Self clamping clips 100 Spindle knob of brass for knob side 40/60mm. 5 Adjustable retainning clips 100 Spindle knob of brass for knob side 65/85mm. 5 Standard clutches 30x30mm 25 Spindle knob of brass for knob side 90/110mm. 5 Double security clutches 30x30mm 25 Knob of polished brass. 5 Double security clutches 30x35mm 25 Knob nickel plated. 5 Double security clutches 35x35mm 25 Pins DIN 7343 Ø2x16mm 100 Knob clutch for key side 30mm (Dimple cylinder lock) 25 Fixing screw M5x80mm of brass. 25 Knob clutch for key side 35mm. 25 Fixing screw M5x80mm nickel plated. 25 Knob clutch for key side 30mm (Saw cylinder lock) 25 Cams DIN R15 for single cylinders 25 Cams R13 for single cylinders 25 KITMODULARTESA KITCOMPONENTES www.baygar.com
