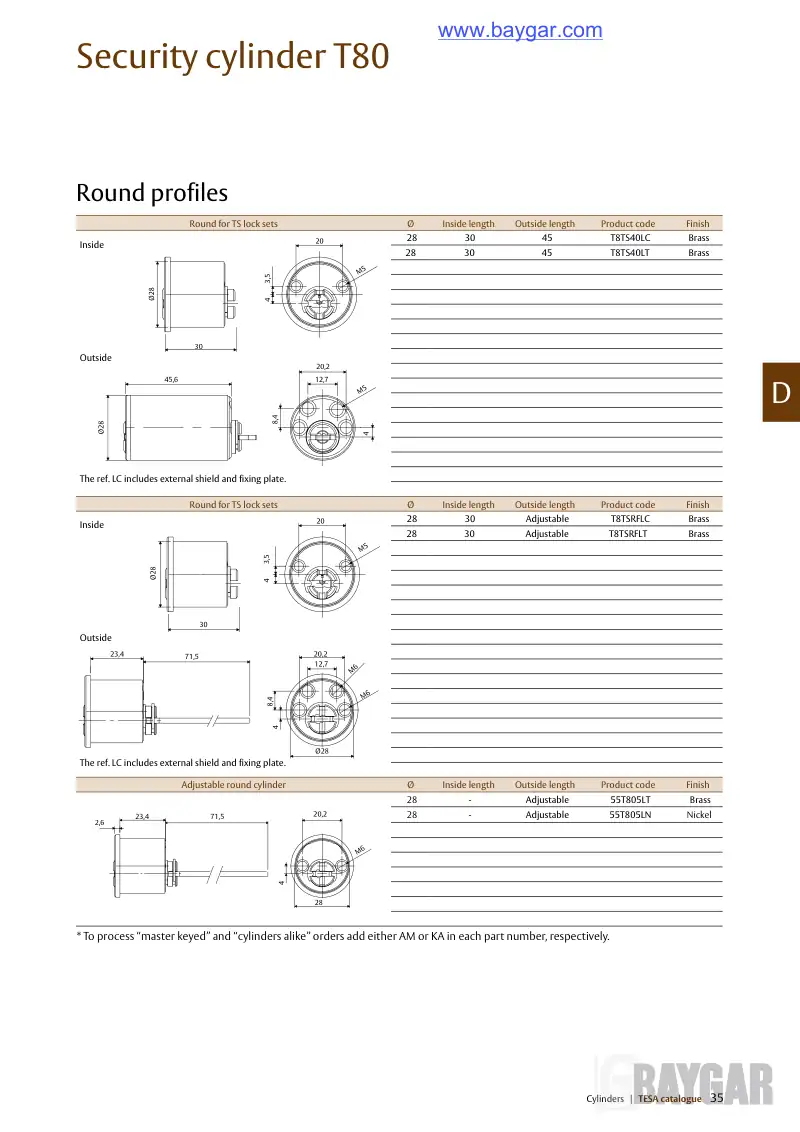

D Cylinders | TESA catalogue 35 Security cylinder T80 Round for TS lock sets Ø Inside length Outside length Product code Finish 28 30 45 T8TS40LC Brass 28 30 45 T8TS40LT Brass Round for TS lock sets Ø Inside length Outside length Product code Finish 28 30 Adjustable T8TSRFLC Brass 28 30 Adjustable T8TSRFLT Brass Adjustable round cylinder Ø Inside length Outside length Product code Finish 28 - Adjustable 55T805LT Brass 28 - Adjustable 55T805LN Nickel Round profiles The ref. LC includes external shield and fixing plate. The ref. LC includes external shield and fixing plate. * To process “master keyed” and “cylinders alike” orders add either AM or KA in each part number, respectively. Inside Inside Outside Outside 20 M5 30 30 71,5 71,5 20,2 28 23,4 2,6 20,2 12,7 23,4 45,6 20 20,2 12,7 Ø28 Ø28 Ø28 Ø28 4 4 4 4 8,4 3,5 3,5 8,4 4 M5 M5 M6 M6 M6 www.baygar.com
