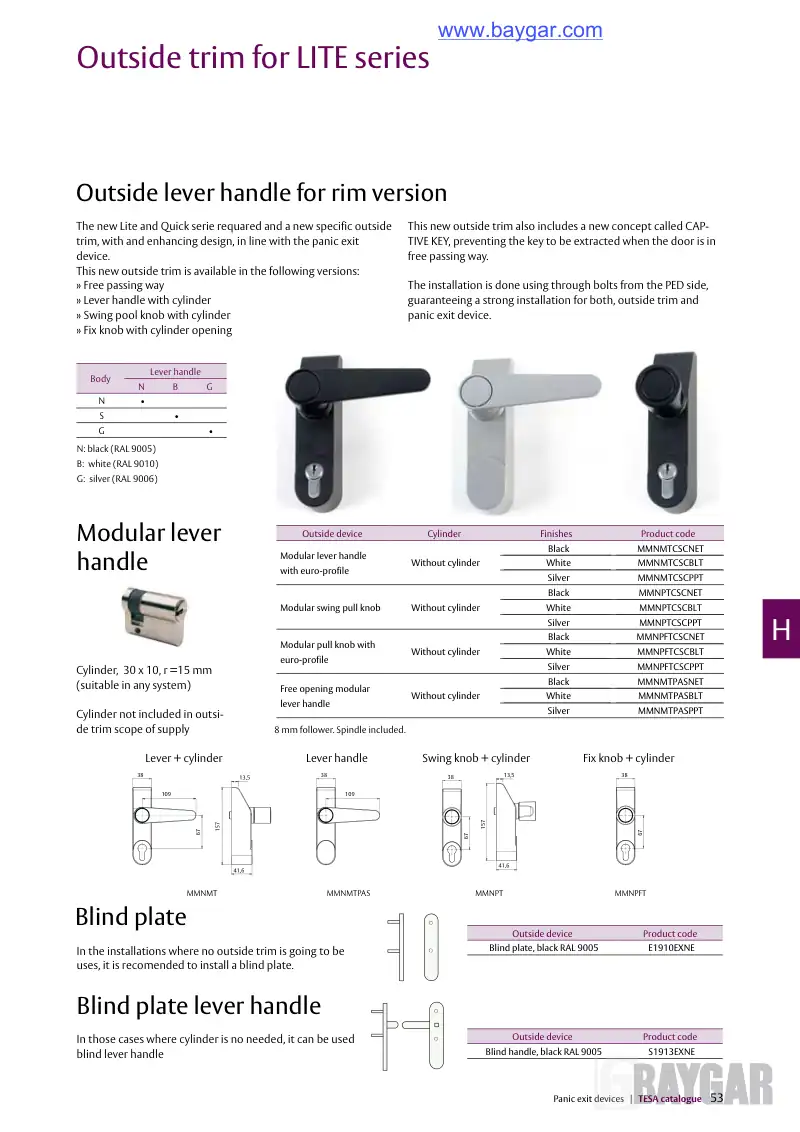

H Panic exit devices | TESA catalogue 53 Outside lever handle for rim version Outside device Product code Blind handle, black RAL 9005 S1913EXNE Outside device Product code Blind plate, black RAL 9005 E1910EXNE In those cases where cylinder is no needed, it can be used blind lever handle In the installations where no outside trim is going to be uses, it is recomended to install a blind plate. Blind plate lever handle 8 mm follower. Spindle included. Modular lever handle Outside device Cylinder Finishes Product code Modular lever handle with euro-profile Without cylinder Black MMNMTCSCNET White MMNMTCSCBLT Silver MMNMTCSCPPT Modular swing pull knob Without cylinder Black MMNPTCSCNET White MMNPTCSCBLT Silver MMNPTCSCPPT Modular pull knob with euro-profile Without cylinder Black MMNPFTCSCNET White MMNPFTCSCBLT Silver MMNPFTCSCPPT Free opening modular lever handle Without cylinder Black MMNMTPASNET White MMNMTPASBLT Silver MMNMTPASPPT Blind plate MMNMT MMNMTPAS Lever + cylinder Lever handle Swing knob + cylinder Fix knob + cylinder 38 109 67 157 13,5 41,6 38 109 MMNPT MMNPFT 67 38 13,5 157 41,6 38 67 Cylinder, 30 x 10, r =15 mm (suitable in any system) Cylinder not included in outsi- de trim scope of supply Outside trim for LITE series The new Lite and Quick serie requared and a new specific outside trim, with and enhancing design, in line with the panic exit device. This new outside trim is available in the following versions: » Free passing way » Lever handle with cylinder » Swing pool knob with cylinder » Fix knob with cylinder opening This new outside trim also includes a new concept called CAP- TIVE KEY, preventing the key to be extracted when the door is in free passing way. The installation is done using through bolts from the PED side, guaranteeing a strong installation for both, outside trim and panic exit device. N: black (RAL 9005) B: white (RAL 9010) G: silver (RAL 9006) Body Lever handle N B G N  S  G  www.baygar.com
