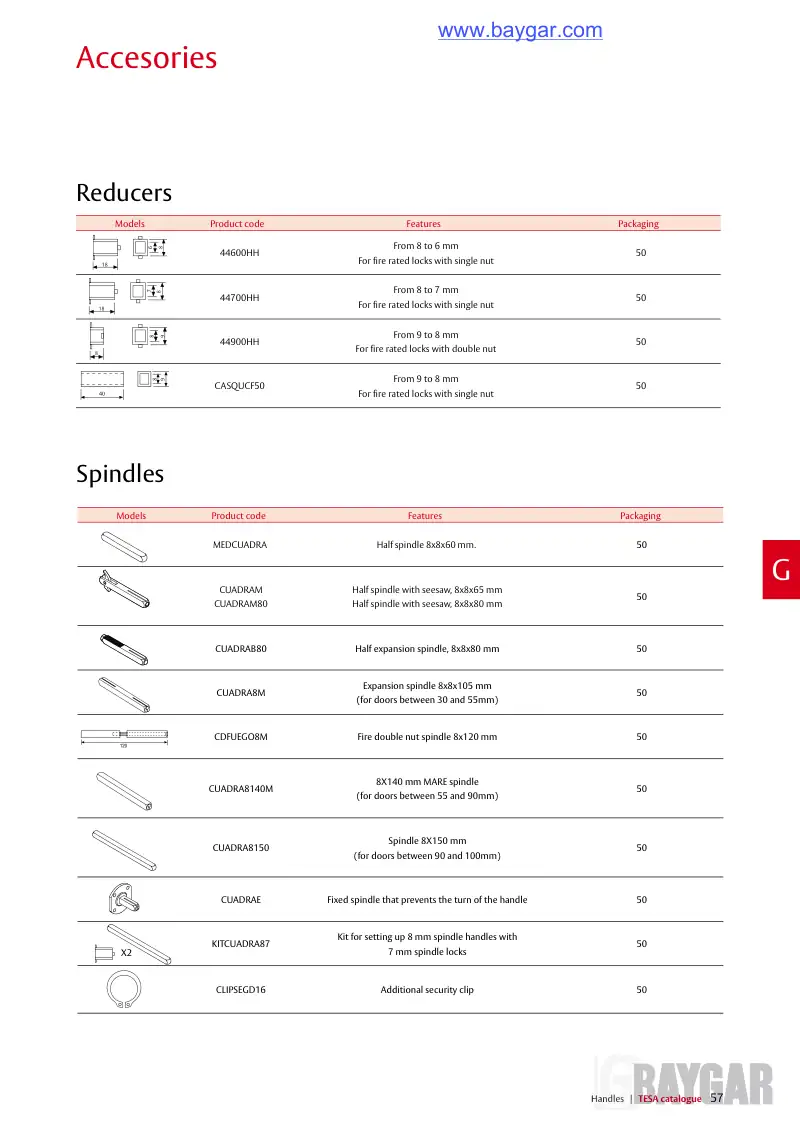

G Handles | TESA catalogue 57 Accesories Models Product code Features Packaging 44600HH From 8 to 6 mm For fire rated locks with single nut 50 44700HH From 8 to 7 mm For fire rated locks with single nut 50 44900HH From 9 to 8 mm For fire rated locks with double nut 50 CASQUCF50 From 9 to 8 mm For fire rated locks with single nut 50 Reducers Spindles Models Product code Features Packaging MEDCUADRA Half spindle 8x8x60 mm. 50 CUADRAM CUADRAM80 Half spindle with seesaw, 8x8x65 mm Half spindle with seesaw, 8x8x80 mm 50 CUADRAB80 Half expansion spindle, 8x8x80 mm 50 CUADRA8M Expansion spindle 8x8x105 mm (for doors between 30 and 55mm) 50 CDFUEGO8M Fire double nut spindle 8x120 mm 50 CUADRA8140M 8X140 mm MARE spindle (for doors between 55 and 90mm) 50 CUADRA8150 Spindle 8X150 mm (for doors between 90 and 100mm) 50 CUADRAE Fixed spindle that prevents the turn of the handle 50 KITCUADRA87 Kit for setting up 8 mm spindle handles with 7 mm spindle locks 50 CLIPSEGD16 Additional security clip 50 18 18 8 40 6 7 8 8 8 8 9 9 X2 www.baygar.com
