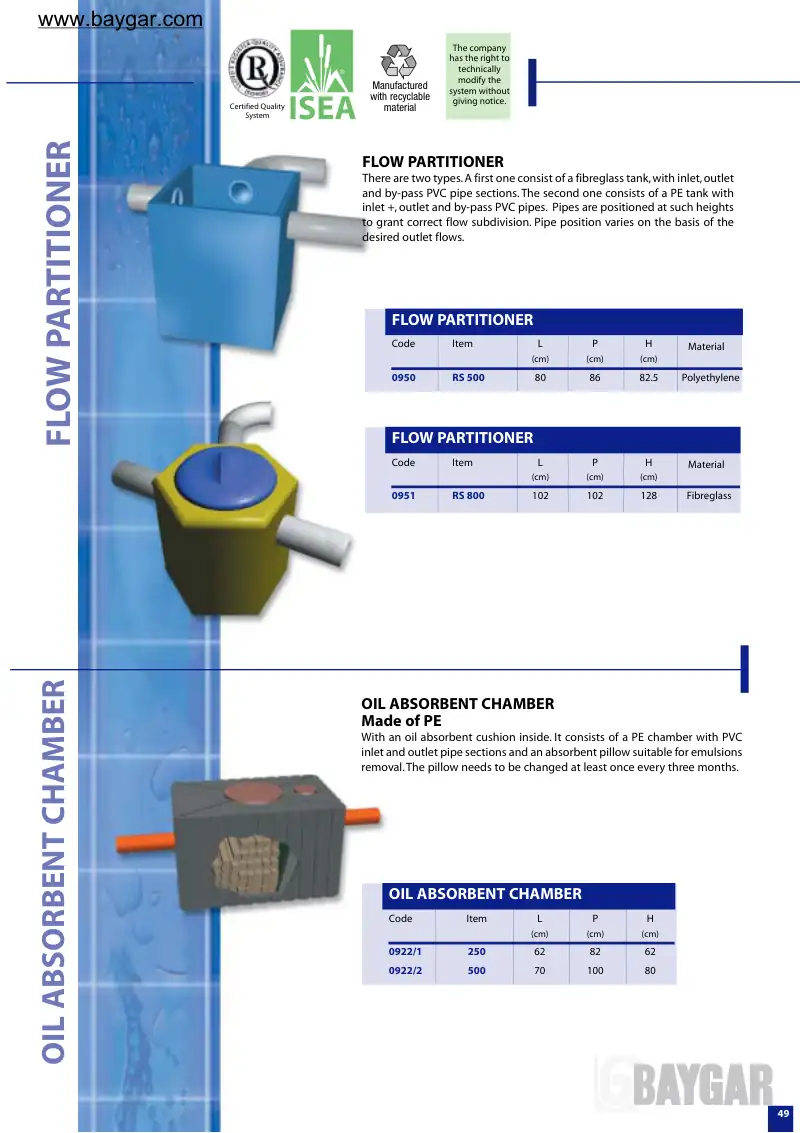

49 FLOW PARTITIONER There are two types.A first one consist of a fibreglass tank,with inlet,outlet and by-pass PVC pipe sections.The second one consists of a PE tank with inlet +, outlet and by-pass PVC pipes. Pipes are positioned at such heights to grant correct flow subdivision. Pipe position varies on the basis of the desired outlet flows. OIL ABSORBENT CHAMBER FLOW PARTITIONER FLOW PARTITIONER Code Item L P H (cm) (cm) (cm) 0950 RS 500 80 86 82.5 OIL ABSORBENT CHAMBER Made of PE With an oil absorbent cushion inside. It consists of a PE chamber with PVC inlet and outlet pipe sections and an absorbent pillow suitable for emulsions removal.The pillow needs to be changed at least once every three months. OIL ABSORBENT CHAMBER Code Item L P H (cm) (cm) (cm) 0922/1 250 62 82 62 0922/2 500 70 100 80 Certified Quality System Manufactured with recyclable material The company has the right to technically modify the system without giving notice. Material Polyethylene FLOW PARTITIONER Code Item L P H (cm) (cm) (cm) 0951 RS 800 102 102 128 Material Fibreglass www.baygar.com
