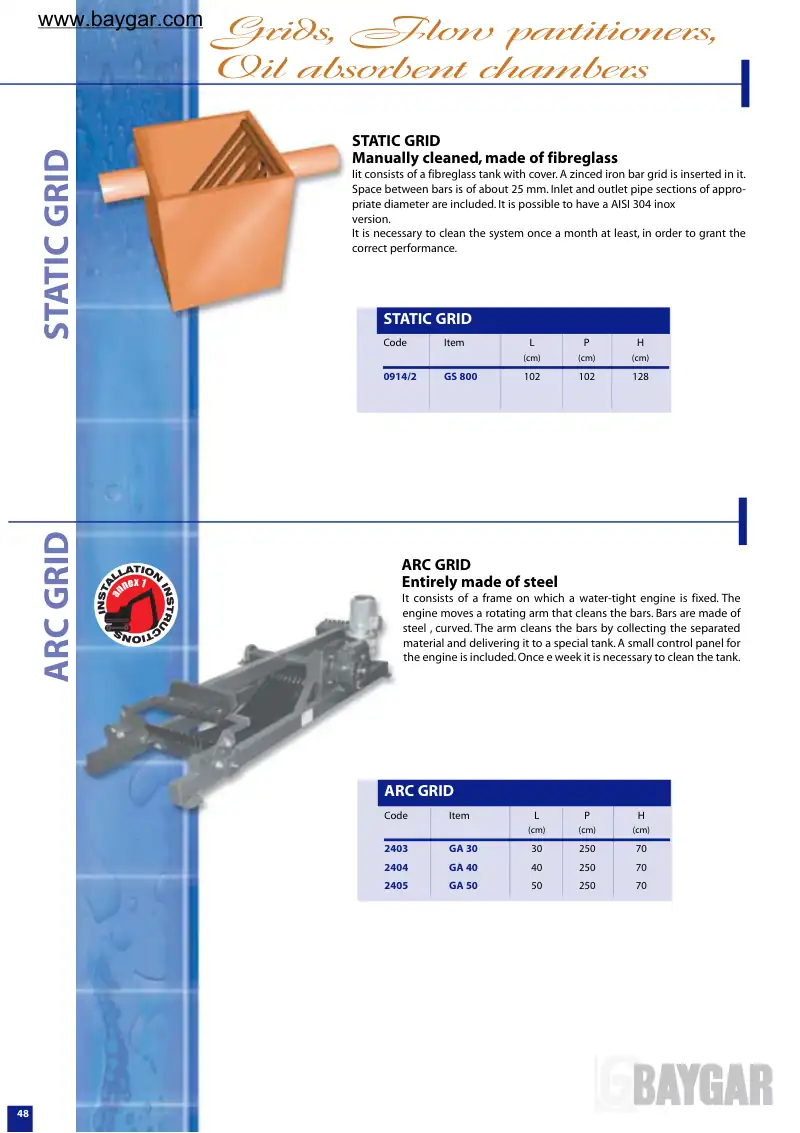

48 Grids, Flow partitioners, Oil absorbent chambers STATIC GRID Manually cleaned, made of fibreglass Iit consists of a fibreglass tank with cover. A zinced iron bar grid is inserted in it. Space between bars is of about 25 mm. Inlet and outlet pipe sections of appro- priate diameter are included. It is possible to have a AISI 304 inox version. It is necessary to clean the system once a month at least, in order to grant the correct performance. ARC GRID STATIC GRID I N S T A L L A T I O N I N S T R U C T I O N S a n n e x 1 STATIC GRID Code Item L P H (cm) (cm) (cm) 0914/2 GS 800 102 102 128 ARC GRID Entirely made of steel It consists of a frame on which a water-tight engine is fixed. The engine moves a rotating arm that cleans the bars. Bars are made of steel , curved. The arm cleans the bars by collecting the separated material and delivering it to a special tank.A small control panel for the engine is included.Once e week it is necessary to clean the tank. ARC GRID Code Item L P H (cm) (cm) (cm) 2403 GA 30 30 250 70 2404 GA 40 40 250 70 2405 GA 50 50 250 70 www.baygar.com
